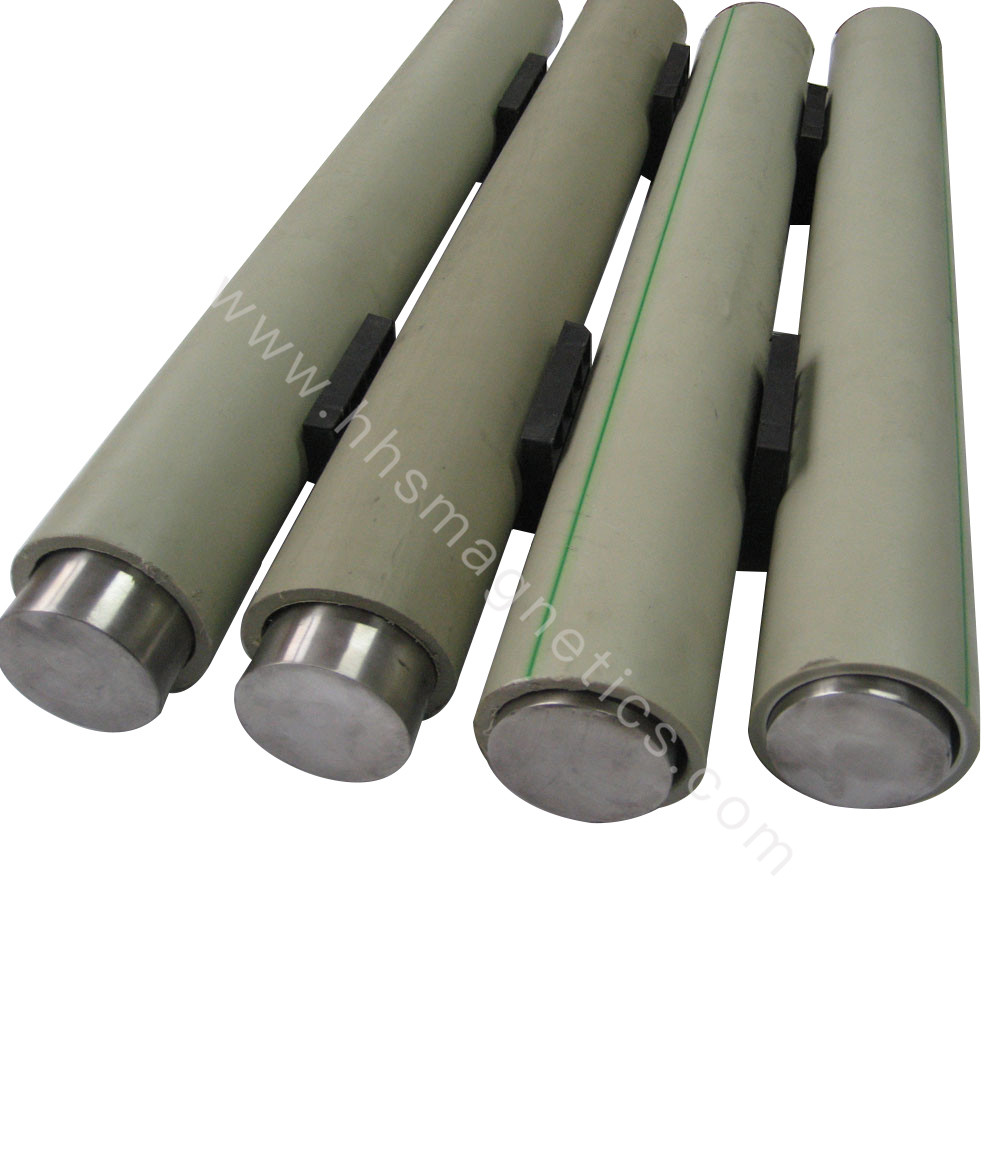

High Performance Permanent Magnetic Bars Used For Separator
Product Description
Packaging & Shipping
  • Names: Magnetic Filter, Magnetic Filter Bar, Permanent Magnetic Filter, Magnetic Separator, Magnetic Bar



    Outside material: stainless steel pipe

    Inside material: NdFeB magnets (or ferrite) and iron spacers

    Diameter 12, 23, 25, 32, 40 mm, etc.


    Application and Structure:

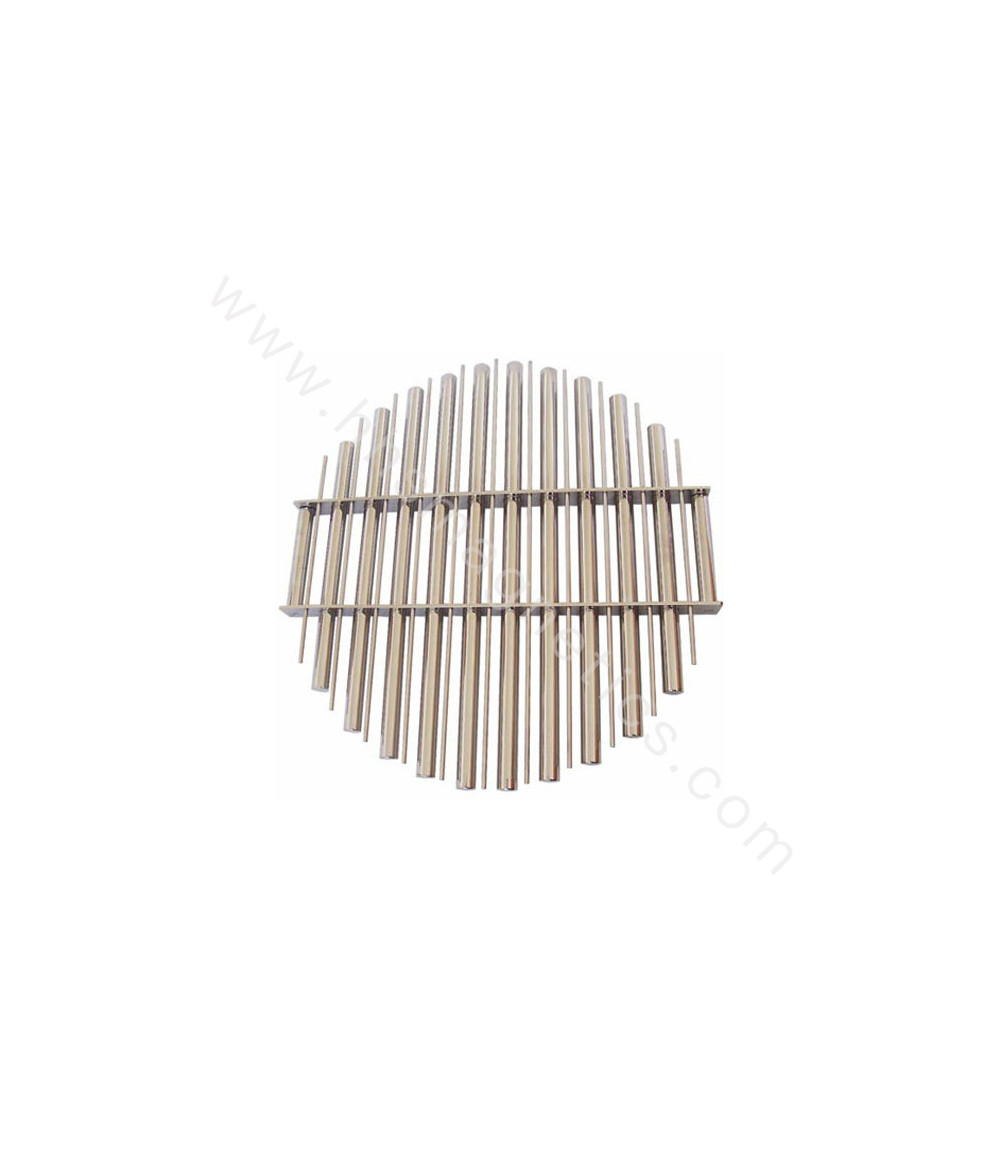

    High effective permanent magnetic filter bars can be installed at any point in solid or liquid material flows to catch and separate very fine ferrous particles,

    and they may apply in medicines, sanitation, textile, machinery and foodstuffs. When the ferrous materials pass through, they will be attracted by strong magnet

    and absorbed on the pipe wall, so as to ensure the intact of the machinery and the safety of products.



    1. It can be used to separate the iron impurity with  strong magnetism and leak magnetism  ,  such as iron rust, iron scrap and other tiny magnetic impurity

    The magnetic strength at the peak value is more than 12000 gauss.

    2. Unique and optimum design of magnetic circuit makes the high-gradient magnetic strength, and with the good effect of separation.

    3. Full catching and strong snap capability can efficiently reduce the times of iron-separation and lower labor working intensity.

    4. The rare earth permanent magnetic material NdFeB is used in the key parts,which has the solid structure and stable performance for long life usage.

    5. No energy-consumption during operation, low operation cost, easy and  convenient to install and clear.
